The SQ-800IR3 boasts all of the advanced features of the SQ-800 such as self-loading, refeed and loop ejection, in an attractive and compact body. Space-efficient design with internal reel unit utilizing a standard size strap coil. This compact body is ideal for printing and mailing applications. The integrated foot arm switch under the body provides hands-free operation.

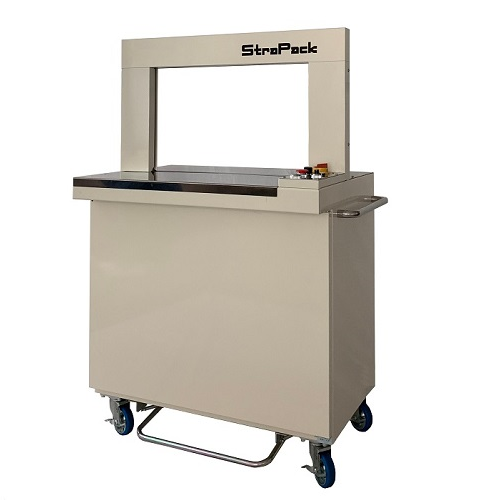

SQ-800IR3

  • Standard strapping rate is 60 straps/min, even when a tension is applied. The machine is ready to operate in less than 25 seconds, contributing to increased packaging line efficiencies.
  • The upgraded sealing head utilizing DC motors means less moving parts and less dusting from plastic strapping. It also reduces the maintenance cost. Strapack's signature self-lubricating design also reduces wear and tear, allows for easier maintenance, and increases operational life of the machine.
  • Arch configuration accommodates U.S. Mail trays with 27 in. opening.
  • Standard Specifications (Arch size 27 in. wide x 16 in. high)
  • Width is 41-3/8 in. (with handles)
  • Height is 56-7/8 in.
  • Depth is 24 in.
  • Weight is 355 lbs.
  • Table Height is 36-7/8 in.
  • Minimum Package Size is W 3-1/8 X H 1-1/8 in.
  • Joint is Heat Seal Polypropylene
  • Strap Widths are 1/4,3/8,1/2 in.
  • Strap Tension is 176 lbf
  • Ships from Union City, CA
